Application and Description
This cable is mainly suitable for use in small and light household appliances, such as connecting kitchen appliances,
table lamps, floor lamps, vacuum cleaners, office equipment, radios, etc. As for the relevant scope of these cables,
they are not allowed to be used in cooking or heating equipment. Cables with a cross-section less than 0.75
square millimeters are not suitable for outdoor use and industrial or agricultural machinery applications. The
maximum operating voltage is Uo/U 330/330 V in single-phase or three-phase systems and Uo/U 495/495 V
in DC systems.
Standards and certifications
CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,

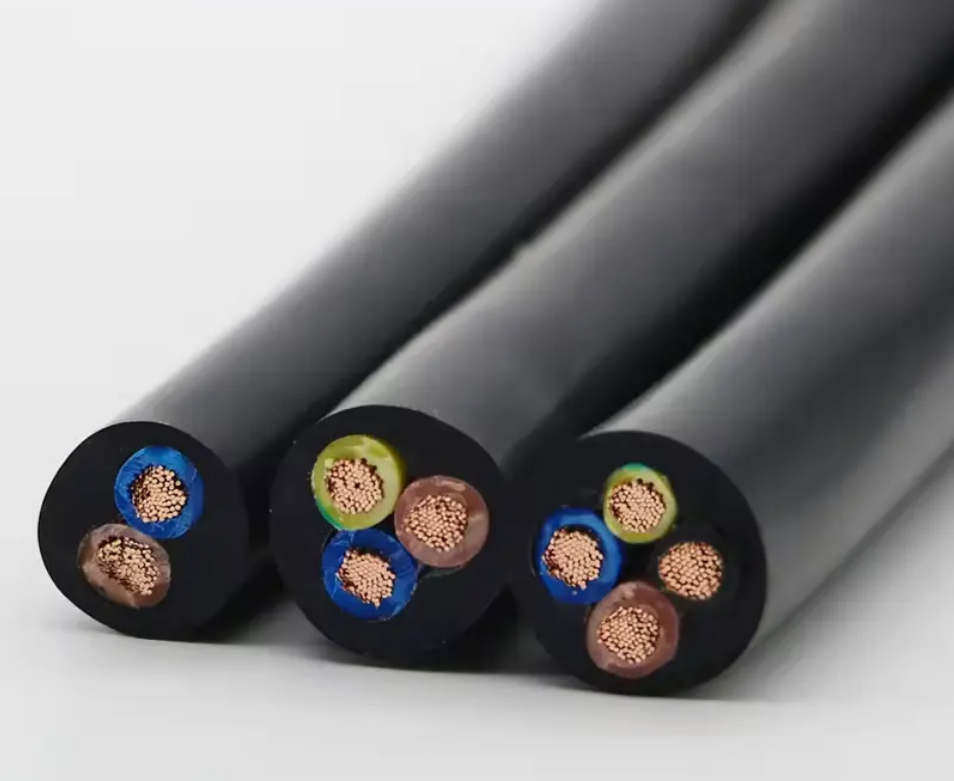

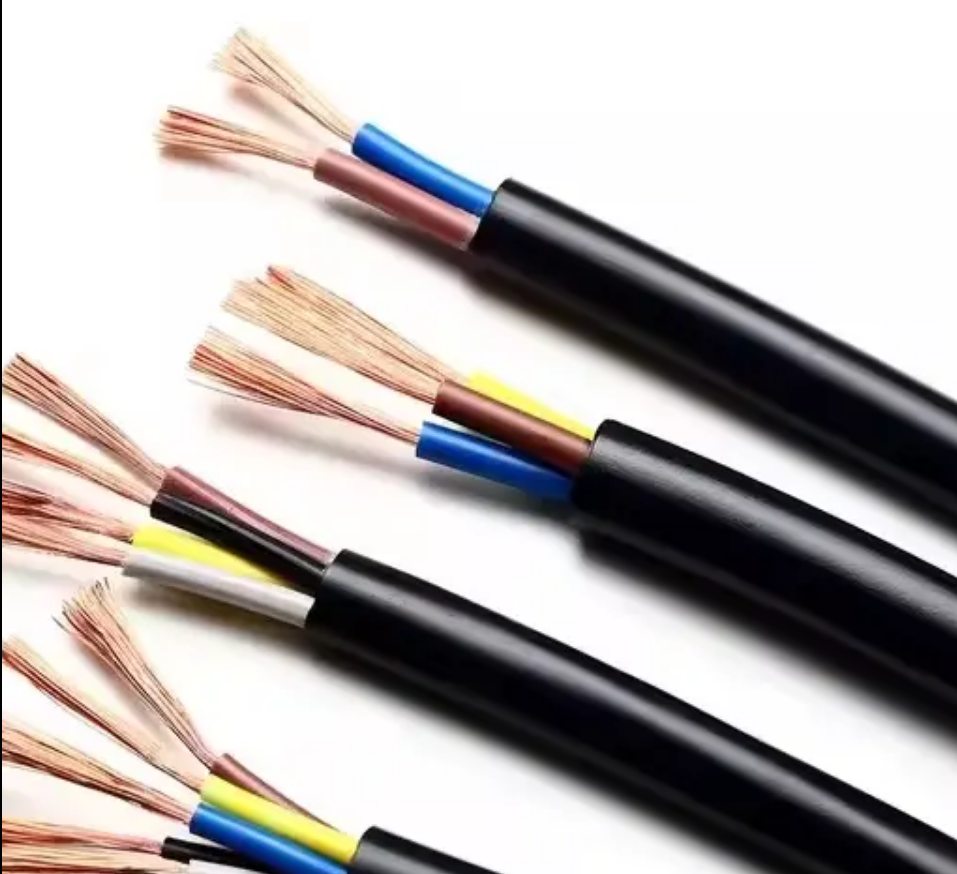

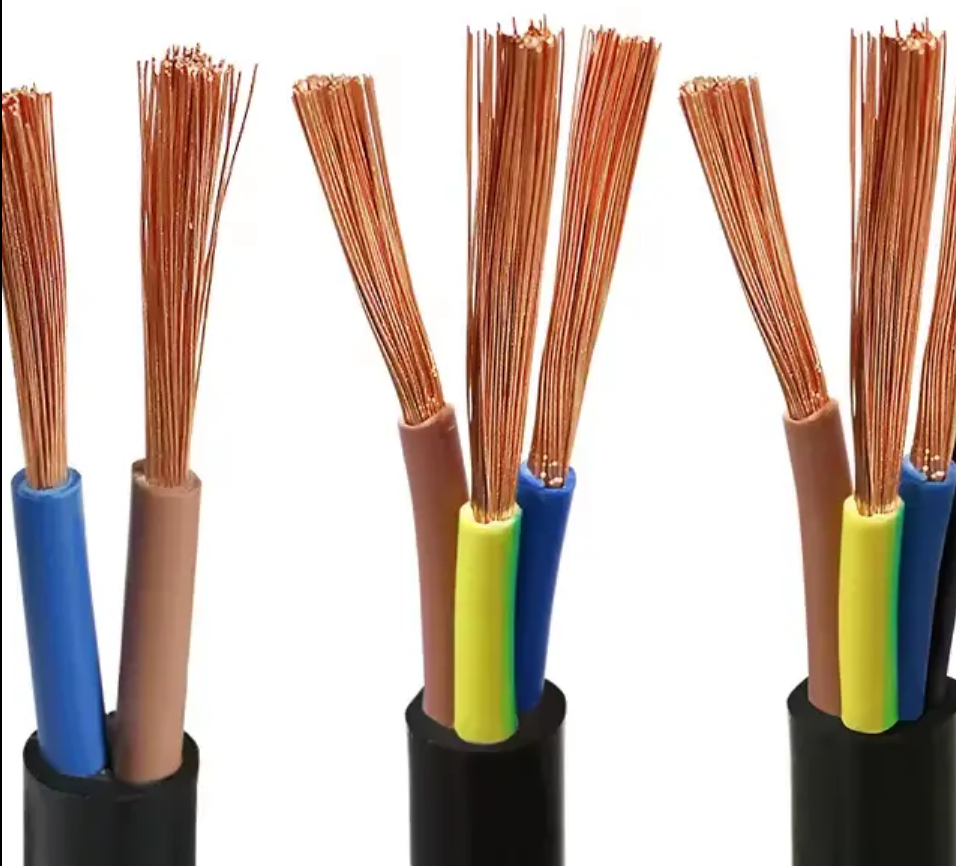

Cable construction
- Flexible bare copper conductor
- Complies with DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 standards
- PVC insulation T12 class, complies with VDE-0281 Part 1
- Color coding complies with VDE-0293-308
- Yellow-green ground wire (three cores and above)
- PVC outer sheath TM2
Technical characteristics
- Operating voltage: 300/300 V
- Test voltage: 2000 V
- Dynamic bending radius: 7.5 x Ø
- Static bending radius: 4 x Ø
- Operating temperature in application: -5º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Cable parameters：
|
Number of cores x conductor cross-sectional area # x mm² |
Nominal insulation thickness mm |
Nominal outer diameter mm |
Nominal copper weight kg/km |
Nominal cable weight kg/km |
Number of cores x conductor cross-sectional area # x mm² |
|
|
H03VV-F |
||||||
|
2 x 0.50 |
0.5 |
0.6 |
5 |
9.6 |
38 |
|
|
3 x 0.50 |
0.5 |
0.6 |
5.4 |
14.4 |
45 |
|
|
4 x 0.50 |
0.5 |
0.6 |
5.8 |
19.2 |
55 |
|
|
2 x 0.75 |
0.5 |
0.6 |
5.5 |
14.4 |
46 |
|
|
3 x 0.75 |
0.5 |
0.6 |
6 |
21.6 |
59 |
|
|
4 x 0.75 |
0.5 |
0.6 |
6.5 |
28.8 |
72 |
|
|
5 x 0.75 |
0.5 |
0.6 |
7.1 |
36.0 |
87 |
|
|
H03VVH2-F |
||||||
|
2 x 0.50 |
0.5 |
0.6 |
3.2 x 5.2 |
9.7 |
32 |
|
|
2 x 0.75 |
0.5 |
0.6 |
3.4 x 5.6 |
14.4 |
35 |
|
